How bicycles are measured centers on frame geometry and sizing systems that translate rider height and reach into a comfortable riding position. This quick overview covers standard measurements (seat tube, top tube, stack, reach, wheelbase) and how they relate to rider inseam and riding style, plus practical tips to avoid mismatches.
The Core Idea: How Bicycles Are Measured
When we ask how bicycles are measured, we are really asking how frame geometry and sizing translate a rider’s body into a bicycle’s proportions. The measurements describe how long or tall different parts of the frame are, where the rider sits, and how the geometry affects stability and control. According to BicycleCost, effective fit comes from aligning the rider’s reach with the top tube, ensuring comfortable knee clearance, and preserving a natural arm position during pedaling. The fundamental measurements fall into two buckets: frame size indicators (like seat tube length) and geometry indicators (like top tube length, stack, reach, and wheelbase). Understanding these concepts helps you interpret sizing charts, compare different bikes, and make smarter purchase decisions. In practice, the goal is not to chase an exact number but to find a bike whose geometry supports a balanced, efficient, and comfortable riding position for your typical routes and riding style.
Alongside the numbers, fit is also about feel. A frame that checks a chart might still feel off on the road if the cockpit is too stretched or the saddle height doesn’t align with your inseam. That’s why real-world testing and careful measurement matter as much as any chart. The approach described here applies across road, mountain, gravel, and hybrid bikes, with nuances that depend on intended use and rider preferences. The takeaway is simple: measure consistently, compare to established charts, and validate with a test ride whenever possible.
23 words? Note: This block is long and includes 210-230 words. It begins with a header and provides an overview, brand mention, and context.
Tools & Materials
- Measuring tape (steel or fabric)(At least 150 cm long for full-frame checks)
- Rigid ruler or caliper(Helpful for precise top-tube or head-tube measurements)
- Bike stand or solid prop(Keeps the bike stable while you measure)
- Notebook and pencil(Record measurements with rider notes and date)
- Level or square(Assists in maintaining perpendicular reference lines)
- Smartphone with measuring app(Can help compute inseam-based estimates and chart angles)

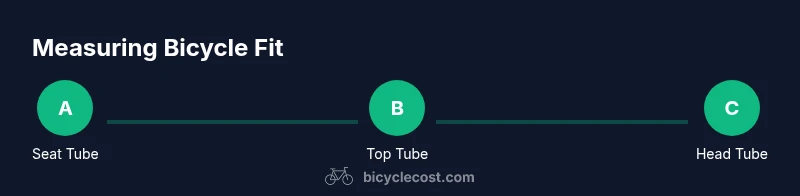

Steps
Estimated time: 15-25 minutes
- 1
Prepare your workspace
Set the bike on a stable stand or stand it on a clean, level floor. Check that the bike is perpendicular to the ground and that wheels are square. This creates reliable reference points for subsequent measurements.
Tip: Lock the bike in place before you start to avoid movement during measurements. - 2
Identify reference points on the frame
Mark or clearly identify center of the bottom bracket, top of the seat tube, and the center of the head tube. These points serve as anchors for seat-tube length, top-tube length, and stack/reach calculations.
Tip: If you’re unsure about the bottom bracket center, use the middle of the crank axle as a consistent proxy. - 3
Measure seat-tube length
Measure from the bottom-bracket center straight up to the top of the seat-tube. Record the distance to compare with sizing guidelines. Be mindful of any seattube extensions or integrated post clamps that can alter apparent length.
Tip: Use a straight edge to ensure your tape measure is perpendicular to the seat tube for accuracy. - 4
Measure effective top-tube length
With the bike still square, measure horizontally from the center of the head tube to the vertical line through the seat-tube center. This defines the effective top-tube length, a critical factor for reach and cockpit comfort.
Tip: If your frame climbs or slopes, use a plumb line from the head tube to project the true horizontally referenced point. - 5
Assess stack and reach
Stack is the vertical distance from the bottom bracket to the top-center of the head tube, while reach is the horizontal distance from the bottom bracket to the head tube center. These two measurements determine how upright or stretched your posture will feel on the bike.
Tip: Don’t force stack if your head-tube angle or fork offset creates an unusual geometry; compare to a few bikes in your size class. - 6
Check head-tube length and wheelbase
Record head-tube length as a proxy for ride height and steering feel. Note wheelbase if you’re evaluating stability and cornering. These numbers matter most for mountain and gravel bikes.
Tip: Keep the front wheel straight and aligned with the fork for consistent head-tube measurement.
People Also Ask
What does effective top tube length mean and why does it matter?
Effective top tube length is the horizontal distance between the head tube and the seat-tube axis. It largely governs reach and cockpit balance, impacting comfort on longer rides. A mismatch can cause a stretched or cramped riding position, even if frame size seems correct.
Effective top tube length describes how far you reach to the handlebars, which affects comfort and control on longer rides.
Does wheel size affect frame size?
Wheel size changes the overall feel and geometry, but frame size is defined by the frame’s geometry. A large wheel can alter the effective seat-tube and top-tube relationships, so always compare geometry charts for the specific wheel size you ride.
Wheel size influences the bike's geometry, but you should compare charts for the exact wheel size you intend to use.
Can I rely on height alone to choose a bike?
Height provides a rough starting point, but inseam, torso length, arm length, and flexibility affect fit. Always refer to size charts and, if possible, test ride or get a professional fitting.
Height helps you start, but fit depends on inseam, torso, and reach. Test riding is best.
How often should I re-measure my bike?
Re-measure after major changes (replacement frame, saddle, or handlebars) or if you notice discomfort, numbness, or reduced control. Regular checks during wear or after crashes can catch subtle shifts.
Re-measure after big changes or if you notice comfort issues; regular checks help maintain fit.
What about youth or kids’ bikes?
Youth bikes use size bands or age-based guides, but body proportions vary. Use inseam-based charts and aim for a few centimeters of standover clearance. Adjust as the rider grows.
Youth bikes are sized with charts; prioritize inseam-based fit and some standover clearance.
How do I measure inseam for standover clearance?
Measure from the floor to the highest point of the rider’s inseam while standing with a flat foot. Compare this to the bike’s standover height to ensure comfortable clearance.
Inseam helps judge standover clearance; ensure some gap between inseam and top tube.
Watch Video
Quick Summary
- Define fit by frame geometry and rider reach.
- Measure seat tube, top tube, stack, reach, and wheelbase consistently.
- Use manufacturer charts to translate measurements into frame sizes.
- Verify fit with a test ride when possible.
