How a Bicycle Dynamo Works: A Practical Guide for Riders
Explore how a bicycle dynamo works to power lights and accessories. Learn about hub and bottle dynamos, installation, maintenance, and troubleshooting from BicycleCost for safer, battery‑free night riding.
A bicycle dynamo is a small generator that converts kinetic energy from wheel motion into electrical energy to power bicycle lights and accessories.
How bicycle dynamo works in practice
At its core, how bicycle dynamo works is simple: as the wheel turns, magnets inside the generator rotate relative to coils, inducing an electrical current. This is electromagnetic induction, the same physical principle that powers larger generators, but scaled for a bicycle. In most setups the rotating magnet and stationary coil produce alternating current, which lights or devices convert to direct current either inside the light or in a separate rectifier. The rider’s speed influences output: faster wheels mean more electricity and brighter lights, while slower speeds may produce dimmer illumination. The goal is stable power across a wide range of speeds so front and rear lights stay consistent during city riding and on longer night stretches. While the concept is simple, practical results depend on alignment, the type of dynamo, and compatibility with your lighting system.
Dynamo types: hub dynamos vs bottle dynamos

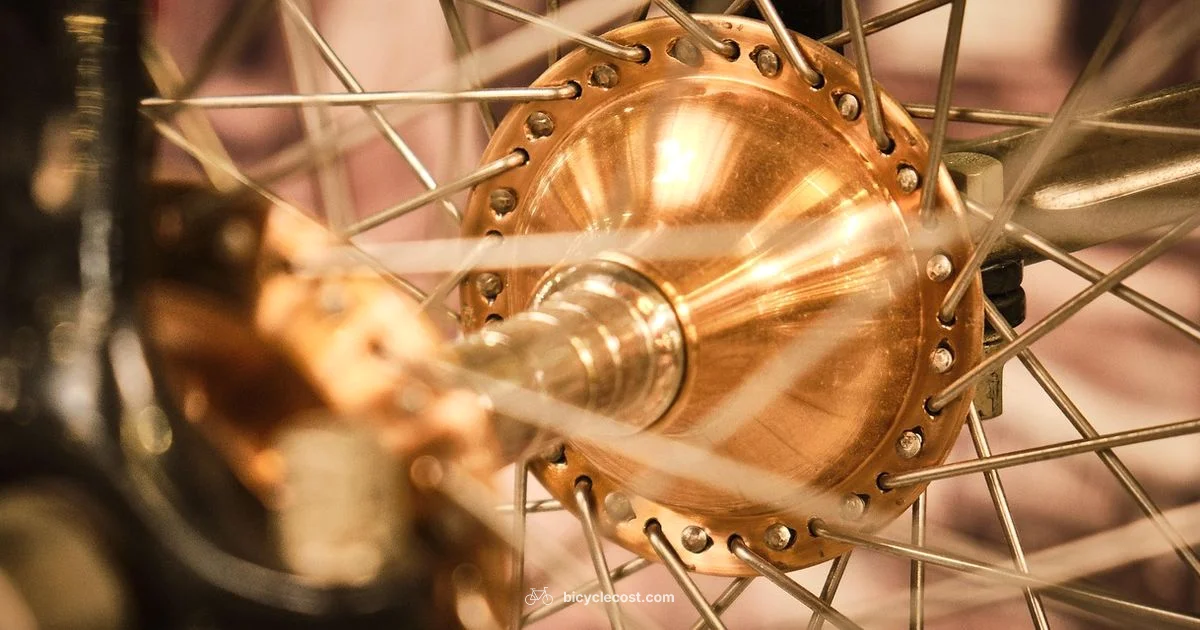

There are two main families of bicycle dynamos: hub dynamos built into the wheel hub and bottle or side‑pull dynamos mounted along the frame or fork. Hub dynamos are integrated into the wheel and generate electricity as the wheel spins; they typically provide consistent output with minimal drag when properly maintained. Bottle dynamos press against the tire with a small roller and are easier to install on older bikes or on frames without a dedicated hub; they can be inexpensive but may suffer more friction, especially in wet or dirty conditions. Each type has tradeoffs for riding style, bike type, and lighting needs. When evaluating how bicycle dynamo works for your setup, consider reliability in wet weather, maintenance requirements, and how much you value low drag versus upfront cost.
What you can power with a dynamo

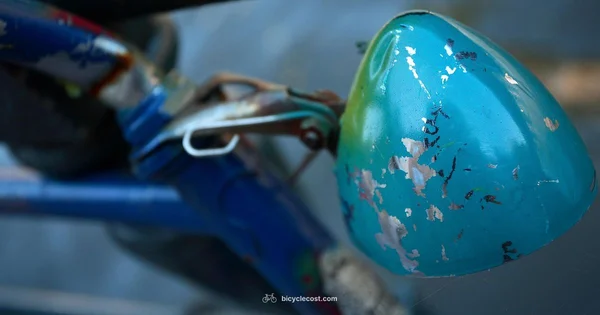

A bicycle dynamo primarily powers front and rear lights, which increases visibility for you and other road users. Many riders also use dynamos to run small USB chargers or to supply power to a dedicated headlamp with a regulator. The energy produced is linked to wheel speed and generator size, so matching a high‑quality light to the dynamo helps maintain brightness across a range of speeds. In practice, a well‑matched dynamo and lighting system provides consistent illumination from slow city commuting to fast night rides, with less need to replace disposable batteries. Always ensure devices are designed for bicycle power and that connections are weatherproof to avoid shorts or corrosion.
How energy is delivered to lights: rectifiers and regulators
Dynamo output is typically alternating current, which must be converted to direct current for most bicycle lights. This conversion happens with rectifiers, either inside the light housing or as a separate unit. Some lights also include a regulator to smooth voltage fluctuations and protect LEDs when you ride at different speeds or brake. The wiring path usually runs from the generator to the light through weatherproof cables, with careful routing to avoid snagging on branches or brakes. Many modern systems place the rectifier inside the light itself, simplifying installation and providing stable brightness. Electronics vary by model, but the underlying idea is the same: capture energy efficiently and deliver usable, reliable power to illumination devices.
Riding speed, gearing, and output: what affects brightness
The mechanical input from turning the wheel translates to electrical output through wheel speed. Higher speeds mean faster rotation and more electricity; the rider’s cadence and wheel size influence how quickly the wheel turns for a given cadence. Gear ratios and tire size subtly affect the effective energy delivered to the dynamo, especially on steep climbs or sprinting. Practically, this means brightness can dip during slow starts or climbs and recover as speed increases. Understanding this helps you select a dynamo and lighting that stay visible across your typical routes. Avoid misalignment or excessive drag, which reduces efficiency and long‑term battery life of any auxiliary devices.
Installation considerations and alignment
Proper mounting is essential for optimal performance. Hub dynamos require accurate wheel alignment and healthy bearings; if the unit sits off‑center, friction increases and energy transfer drops. Bottle dynamos rely on the contact between the roller and tire, so correct pressure, alignment, and even tire wear matter. Cable routing should be clean and weatherproof, with strain relief to prevent early connector failure. If you swap to a dynamo wheel, check dropout spacing and compatibility with your brakes and fork. A well‑installed dynamo minimizes drag and provides predictable power across speeds, contributing to safer night riding.
Maintenance and common wear parts
Regular inspection of the dynamo components extends life and keeps output consistent. Hub dynamos benefit from clean bearings and period lubrication per manufacturer guidance; avoid over‑lubricating near electrical parts. Bottle dynamos require smooth tire contact and clean rollers; replace worn rollers and inspect the mounting hardware for looseness. Wipe away road grime from the housing and inspect cables for cracks or wear. Weather exposure accelerates corrosion, so consider rain covers for outdoor bikes and sealed connectors where possible. By keeping contacts clean and components in good condition, you maintain reliable, battery‑free power.
Common issues and troubleshooting
If lights flicker or appear dim at certain speeds, check wheel speed, alignment, and the light’s electronics. Loose connections or dirty contacts can cause intermittent power; re‑terminate wires and clean contacts. Bottle dynamos may show reduced output if the roller is worn or if tire contact is imperfect; cleaning or replacing the roller can restore brightness. Oil, dirt, or grit on bearings can increase drag and reduce efficiency, so see if a service is due. On wired systems, verify polarity and ensure correct connections to avoid short circuits. Regular testing at multiple speeds helps you catch problems early and minimize safety risks on the road.
Authority sources and further reading
To support best practices, consult authoritative sources on electricity and bicycle safety. For general electrical principles that underpin how bicycle dynamo works, see open course materials from MIT OpenCourseWare and basic physics references from NIST. Federal safety guidelines for visibility and night riding can be found through government resources, while professional engineering handbooks provide deeper design details.
Choosing and installing a dynamo: a practical checklist
When selecting a dynamo, consider your bike type, wheel size, braking system, and typical riding conditions. Front hub dynamos are common and reliable for most city and touring bikes, while bottle dynamos remain suitable for older frames or budget builds. Use the installation checklist to verify mounting alignment, cable routing, weatherproofing, and test power at varying speeds. A careful choice and proper setup result in dependable, battery‑free lighting that enhances safety and reduces maintenance needs over time.
People Also Ask
What is a bicycle dynamo and what does it do?
A bicycle dynamo is a small generator that converts kinetic energy from wheel motion into electrical energy to power bicycle lights and accessories. It provides battery‑free lighting when you ride, with output depending on speed and generator type.
A bicycle dynamo is a small generator on your bike that powers lights as you ride. The energy comes from wheel motion and speed.
What are the main types of bicycle dynamos?
The two common types are hub dynamos built into the wheel hub and bottle or side‑pull dynamos that press against the tire. Each type has different efficiency, drag, and maintenance needs.
There are hub dynamos inside the wheel and bottle dynamos that press on the tire. Each has pros and cons.
Can a dynamo power devices other than lights?
Yes, some dynamos can power USB chargers or a low‑power headlamp, but performance depends on the load and the rectification/regulation in the system. Always check device compatibility.
Some dynamos can charge USB devices or run a headlamp, but check compatibility and power needs.
Will using a dynamo drain my e bike battery?
Dynamos provide power independently of the e‑bike battery; they do not normally drain the battery. However some setups route power through the bike's electrical system, so consult your manufacturer's guidance.
Dynamos operate independently of the e‑bike battery and usually do not drain it, but check your wiring.
How do I install a dynamo on my bike?
Installation varies by type. Hub systems require wheel removal and careful rotor alignment; bottle dynamos involve mounting and adjusting contact pressure. Follow manufacturer instructions and consider professional help for safety‑critical parts.
Install according to the maker's instructions; hub dynamos need wheel work, bottle dynamos need frame mounting, and alignment matters.
What maintenance does a dynamo require?
Regularly inspect bearings, seals, and wiring. Clean contacts and rollers, check for wear, and lubricate only where recommended. Protect connectors from moisture and inspect cables for damage after riding in rough conditions.
Keep bearings clean, wipe contacts, and protect cables. Replace worn parts as needed.
Quick Summary
- Install and align carefully for best performance
- Dynamo hubs are usually more consistent than bottle dynamos
- Regular maintenance reduces wear and power loss
- Rectification and regulation affect light brightness
- Consider speed, gearing, and riding style when choosing a dynamo
